GEN-M1

Provides up to 220 liters of fresh, clean drinking Water From Air daily

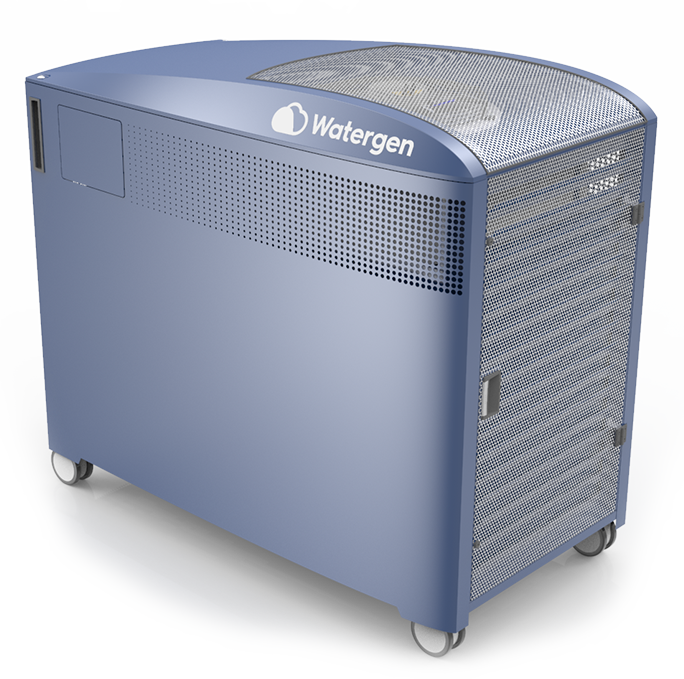

Watergen’s GEN-M1 is a medium-scale mobile Atmospheric Water Generator. It is the ideal solution for schools, universities, construction sites, clinics, public pools, off-grid housing, temporary localities and private residential homes seeking a new, off-the-grid drinking water source.

GEN-M1 doesn’t require any infrastructure besides an electrical socket and works absolutely independently f rom existing piping. Using Watergen’s patented GENius technology, the GEN-M1 enables the creation of up to 220 liters of fresh, safe and tasty drinking water from the air around us every day.

The device uses innovative water purification technology for sediment filtration, mineralization, activated carbon and microbiological treatment.



GEN-M1 is one of the most energy – efficient AWGs on the market, enabling more water production with less electricity consumption. GEN-M1 produces drinking water in a wide range of climate conditions: from 15°c and 20% humidity.

With no internal tank, the GEN-M1 can be equipped with a complementing system- an external water storage tank with an attached smart quality system, including a controller and malfunction alert system. The complementing system keeps the water fresh all day by circulating it around the reservoir, ensures a bigger storage capacity for the device and access to more high-quality drinking water.

GEN-M1 brochure
GEN-M1 specification

GEN-M1 Advantages

water

Best-quality drinking water

Fresh and safe drinking water extracted from air. Purification and filtration systems combined with UV lamp ensure clean, safe and tasty drinking water available throughout the day.
temperature

Water production

In a wide range of climate conditions: starts from 15°C and 20% humidity
transportation

Fully mobile

Fitted with wheels for full mobility, no plumbing needed. Easy transportation to anywhere needed
Globe

Environmentally friendly

Reduces the need for plastic water bottles, logistic and transportation. Reduces carbon footprint.
GEN_M1_ADVANTAGES
icon

Plug & drink

Needs only connection to single phase electrical socket
icon

Unique and innovative technology

Our revolutionary, patented heat-exchanger produces up to 220 liters of drinking water per day
icon

Standards compliance

Complies with international drinking water safety standards
icon

Complementary system (optional)

External drinking water storage and high-quality treatment system

Specifications

Water generation capacity: Up to 220 liters/day Water temperature Ambient water
Water purification Multi step filtration cascade down to 0.2 micron of water certified filters set, followed by a germicidal UV lamp. Vital minerals balance the water pH to achieve high purification and tasty drinking water. Working environment ≥15°C. Relative Humidity: ≥20%
Water tank External tank required Power consumption 2.2.kW/h (min) up to 3.5 kW/h (max)
Nominal Operation Voltage EU: 230/400VAC, 50Hz; US: 120/208VAC, 60Hz Dimensions (L x W x H) 1590mm x 840mm x 1300mm
Weight 350 kg Air filtration Sub-micron barrier filter that eliminates <2.5 particulate matter
Circuit breaker current US: 2 Phases; 250Vac; 16/20A; slow; ROW: 1 Phase; 250Vac; 16/20A; slow Residual current circuit breaker; Ground fault circuit breaker Water tank External tank is required
Watergen external tank capacity options 500 liters Watergen external tank treatment system Ozone generator, UV lamp, Carbon Filter, Controller, electronic dispenser
